1000 Liter stainless steel single beer fermentation tank for sale

  • >=1 Sets
    $3,599.00
Model Number:
1000L
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$150.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
NDL Craft
Voltage:
220/280V or customization
Weight:
350KG
Processing Types:
Beer
Certification:
CE ISO BV
Dimension(L*W*H):
1260*1260*2650
Power(W):
5KW
Applicable Industries:
Hotels, Manufacturing Plant, Food & Beverage Factory, Restaurant, Food Shop, Food & Beverage Shops
After Warranty Service:
Video technical support, Online support
Local Service Location:
Canada, United Kingdom, United States, Germany, Australia
Showroom Location:
Canada, United Kingdom, United States, Germany, Australia
Name:
1000 litre fermentation tank
Material:
SUS304/SUS316/red Copper
Cooling way:
Dimple jacket
Cooling media:
Glycol water
Temperature measurement:
PT100
Temperature control:
Automatic
Insulation:
Polyurethane/rockwool
Plants Type:
Mirror polishing/2B/wire Drawing
Application:
Fermenting
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
5 Years
Supply Ability
Supply Ability:
20 Set/Sets per Month 1000 litre fermentation tank
Packaging & Delivery
Packaging Details
Plastic paper firstly then outside with iron frame ( standard wooden case) for LCL
Plastic film wrapped and steel frame fixing for FCL
Port
Qingdao/Tianjin/Shanghai/Ningbo/Shenzhen port and so on
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated

1000 Liter stainless steel single beer fermentation tank for sale





Product Description


Hot Sale 1000L Fermentation Tank

 Fermenter 1000L .jpg

Fermentation tank series

Volume in US Gallon

Diameter

Height

100l Fermentation tank

26US Gallon

640mm

1500mm

200l Fermentation Tank

53US Gallon

760mm

1800mm

300l Fermentation Tank

79US Gallon

860mm

2000mm

500l Fermentation Tank

132US Gallon

960mm

2350mm

1000l Fermentation Tank

264US Gallon

1260mm

2650mm

2000l Fermentation Tank

528US Gallon

1560mm

3150mm

3000l Fermentation Tank

793US Gallon

1800mm

3550mm

5000l Fermentation Tank

1321US Gallon

2000mm

4450mm

10000 Fermentation Tank

2642US Gallon

2200mm

6100mm

20000 Fermentation Tank

5283US Gallon

2200mm

10200mm





1. Specifications of 1000L fermentation tanks:



No.

Item

Introduction

01

Volume

1000L

02

Dimention1260*2650mm

03

Material

Stainless steel 304

04

Insulation

Polyurethane, TH: 80mm

05

Fermentation tank

Glycol jacket: Dimpled jacket on the cone and side

Or single wall with jacketed,or single layer fermentor.

06

Head

Double or single dish head on the top

07

Accessories

Sample valve, pressure gauge, solenoid valve, pressure relief valve, racking arm, CIP arm and Blow off arm, dry hops port and so on.

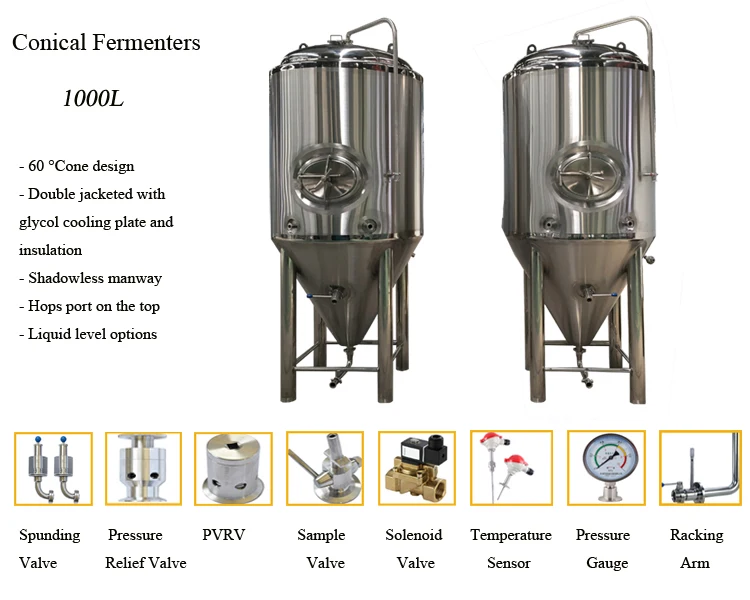

2. Details of 1000L fermentation tanks:

1000L Fermenters.jpg

Send Inquiry>>

Click Here Contact Us Now!!!



3. Production process of 1000L fermentation tanks:

production process.jpg

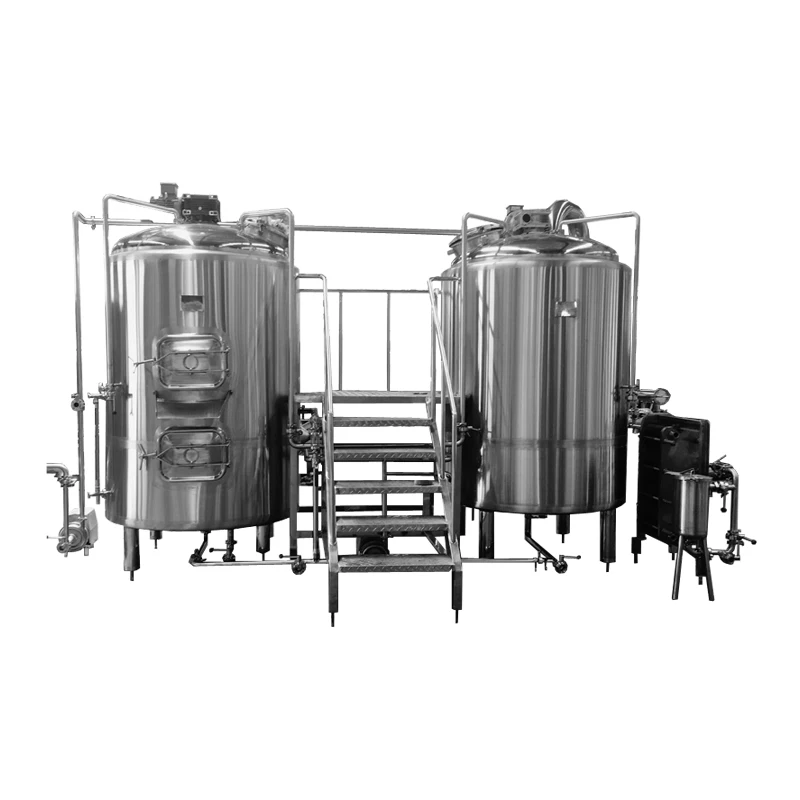

4. You might be interested in 1000L brewhouse


Click Here for More Information Now!!!



5. Application of 1000L fermentation tanks:

hote pub(1).png

Send Inquiry>>

Click Here Contact Us Now!!!



Quality Control

.jpg

CE Certifications

NDL Craft Certificates

NDL CRAFT has passed quality audits for internationally recognized certifications; ISO9001, 2000 International Quality Management System Certification,

ISO14001 Environmental Certification,

ISO18001 Occupational Health and Safety System Certification,

DI, and DII Pressure Vessel Certification.

We have also been recognized at a national-level as a scientific and technological innovation enterprise with 15 patented technologies granted in China.

Company Information

1. Company Profile

NDL Craft workshop

NDL Craft, founded in 2011, is a brewing equipment manufacturer and brewing technology engineering company that provides many kinds of customized tanks and turnkey projects throughout the world. The company attaches great importance to the research and development of core technology. On the basis of maintaining the manufacturing cost of China, the company can design according to CE PED standards and ASME design codes, and institutes production and quality control methods according to both European and American quality standards.

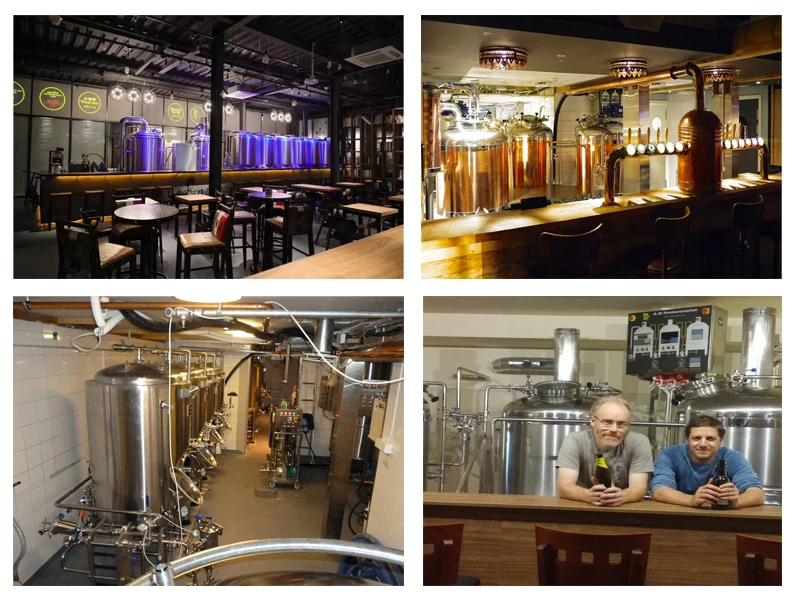

2. Customer cases

Customer case.jpg

3. Our partner

coperator parterner(1).png

4. Our service

_03



Packing & Delivery

_04

Contact Information

We are grateful that you are interested in our product and thanks for your time .
For any query regarding our Beer Brewery Equipment, please feel free to contact us.
We will be more than happy to support you !
